Active HDMI 2.1 EMI Filter

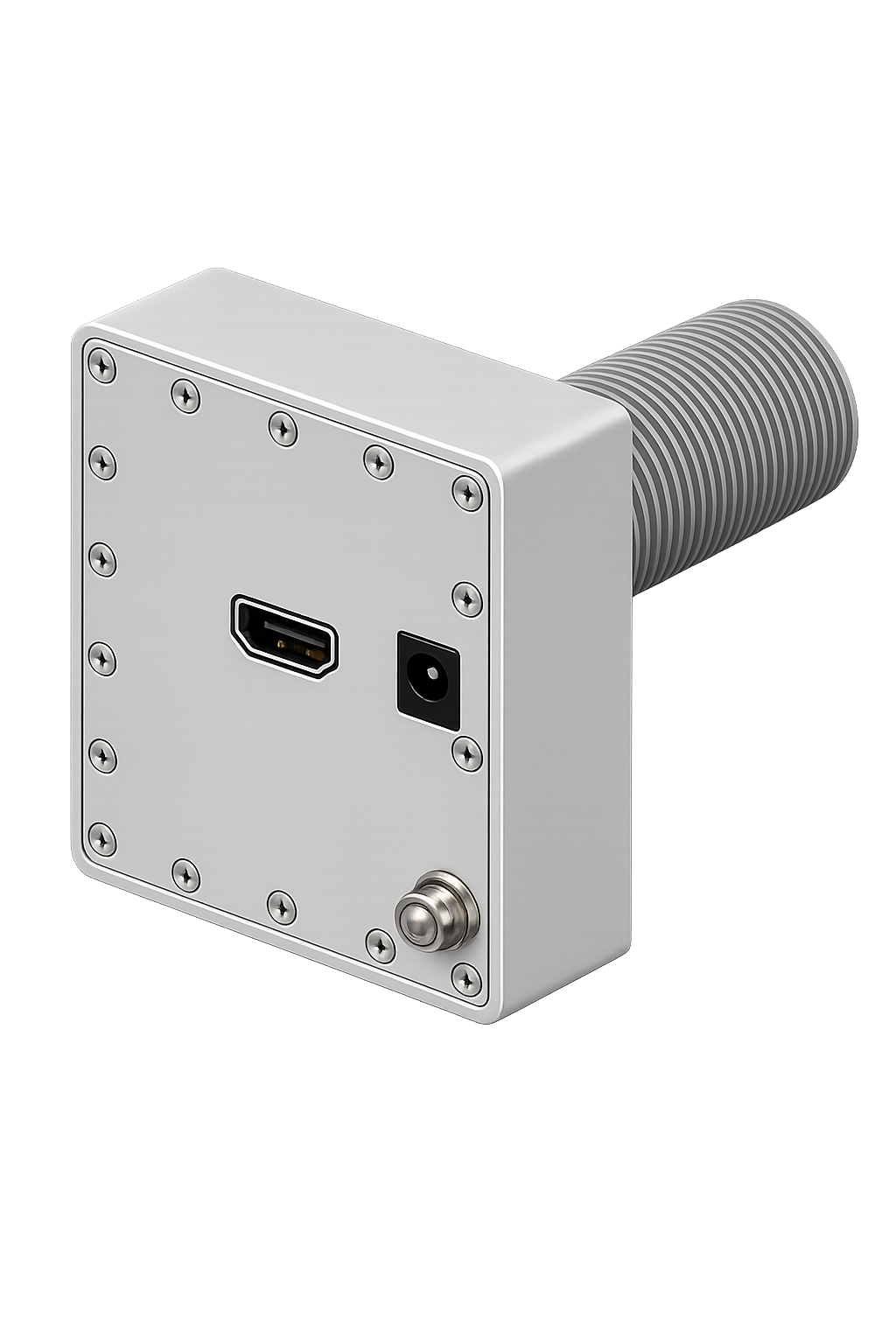

The ACTIV HDMI is the only active EMI filter for HDMI signals that uses Digital Signal Processing (DSP) to bring HDMI into shielded enclosures. The filter supports HDMI 1.4, 2.0, and 2.1 at combined data rates up to 48 Gbps with greater than 80dB insertion loss from 350MHz to beyond 40GHz. Unlike fiber-based HDMI isolators that generate their own radiated emissions inside the shielded enclosure, the ACTIV HDMI uses proprietary DSP technology to actively reconstruct HDMI signals without interference — no fiber conversion, no protocol overhead, no strong emissions inside the enclosure. Suitable for SCIF installations, MRI suites, and RF test laboratories requiring filtered HDMI connectivity through a shielded wall. Made in the USA.
80dB Shielding Effectiveness.
HDMI 2.1 at 48 Gbps. No Fiber.
The ACTIV HDMI uses proprietary DSP technology to actively reconstruct HDMI signals without interference through the shield wall. Four balanced differential signal pairs plus HDMI Ethernet pass at combined rates up to 48 Gbps while greater than 80dB insertion loss from 350MHz to beyond 40GHz prevents signal leakage on either side of the enclosure wall. Backwards compatible with HDMI 2.0 and HDMI 1.4. No fiber conversion required — and unlike fiber-based solutions, no strong radiated emissions are generated inside the shielded enclosure.
Military-grade passive filtering ensures audio, video, and data signals traverse the filter in complete electromagnetic isolation. Signal lines are balanced throughout the multilayered cards to maintain the fast rise times required by HDMI digital square wave signals. As a special order product, specification adjustments are available upon request. Contact engineering to discuss your requirements.
Representative specifications. Subject to adjustment based on your application.
| Shielding Effectiveness | >80dB from 350MHz to 40GHz (typical) Tested without cables attached, per IEEE 299-2006 methodology adapted for filter characterization. |
| Insertion Loss | >80dB from 350MHz to 40GHz (typical) Insertion Loss performance measured using a method based on MIL-STD-220B. |
| Radiated and Conducted Emissions | Exceeds MIL-STD-461 CE102 Exceeds MIL-STD-461 RE102 Exceeds FCC Part 15 A, B Exceeds EN 55032 Class A, B |
| ACTIV™ EMI filters are active filters and produce a limited amount of radiated emissions inside the shielded enclosure. Please contact DJM Electronics for information regarding your particular application. |
| HDMI Standards | HDMI 1.4 HDMI 2.0 HDMI 2.1 (48 Gbps) |
| Combined Data Rate | Up to 48 Gbps (HDMI 2.1) |
| Data Lines | 4× Video Data/Clock, 1× HDMI Ethernet |
| Signal Direction | Video: Unidirectional Mounting stub side: HDMI Input (source) Label side: HDMI Output (display) Ancillary signaling and control: Bidirectional |
| Video Data and Clock | 0dB insertion loss |
| Ancillary Signal Insertion Loss | <1dB |
| Data Line Impedance | 100Ω typical |
| Maximum Resolution | Up to 4K (HDMI 1.4/2.0) |
| Housing | Aluminum w/Electroless Plated Nickel |
| Dimensions | 3.96″ × 3.15″ × 0.85″ (100.6 × 80.0 × 21.6mm) |
| Mounting | 1-1/4-18 UNEF-2A Threaded Mounting Stub Standard penetration length: 0.9″ Custom lengths available upon request |
| Connectors | HDMI Type A Receptacle (×2) 2.1mm × 5.5mm DC Barrel Jack |
| Power | Input: 100-240VAC, 50/60Hz Output: +12V / 500mA maximum, via supplied power adapter (Marked "LPS" or "Class 2" Only) DC Plug: 2.1mm × 5.5mm, center positive |
| Indicators | Power LED (red) |
| Warranty | 2 years. View warranty terms |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) continuous |
| Humidity | 5% to 90% non-condensing |
| RoHS Compliance | RoHS 3 compliant (Directive 2011/65/EU as amended by 2015/863). Self-declared. |
| REACH SVHC | No Substances of Very High Concern above the 0.1% threshold. Self-declared based on supplier documentation. |
| California Proposition 65 | No known Proposition 65 listed substances above notification thresholds. |
| Conflict Minerals | Dodd-Frank Section 1502 compliance program in place. Reasonable country of origin inquiry conducted with component suppliers. |
| Country of Origin | United States. Made in the USA. |
Two Demanding Applications.
Datasheets, Drawings, and Installation Guides.
Interested in the ACTIV HDMI?
This is a special order product available in minimum quantities. Contact our engineering team to discuss your application, HDMI version requirements, and pricing.
