1G
Passive Ethernet EMI Filter

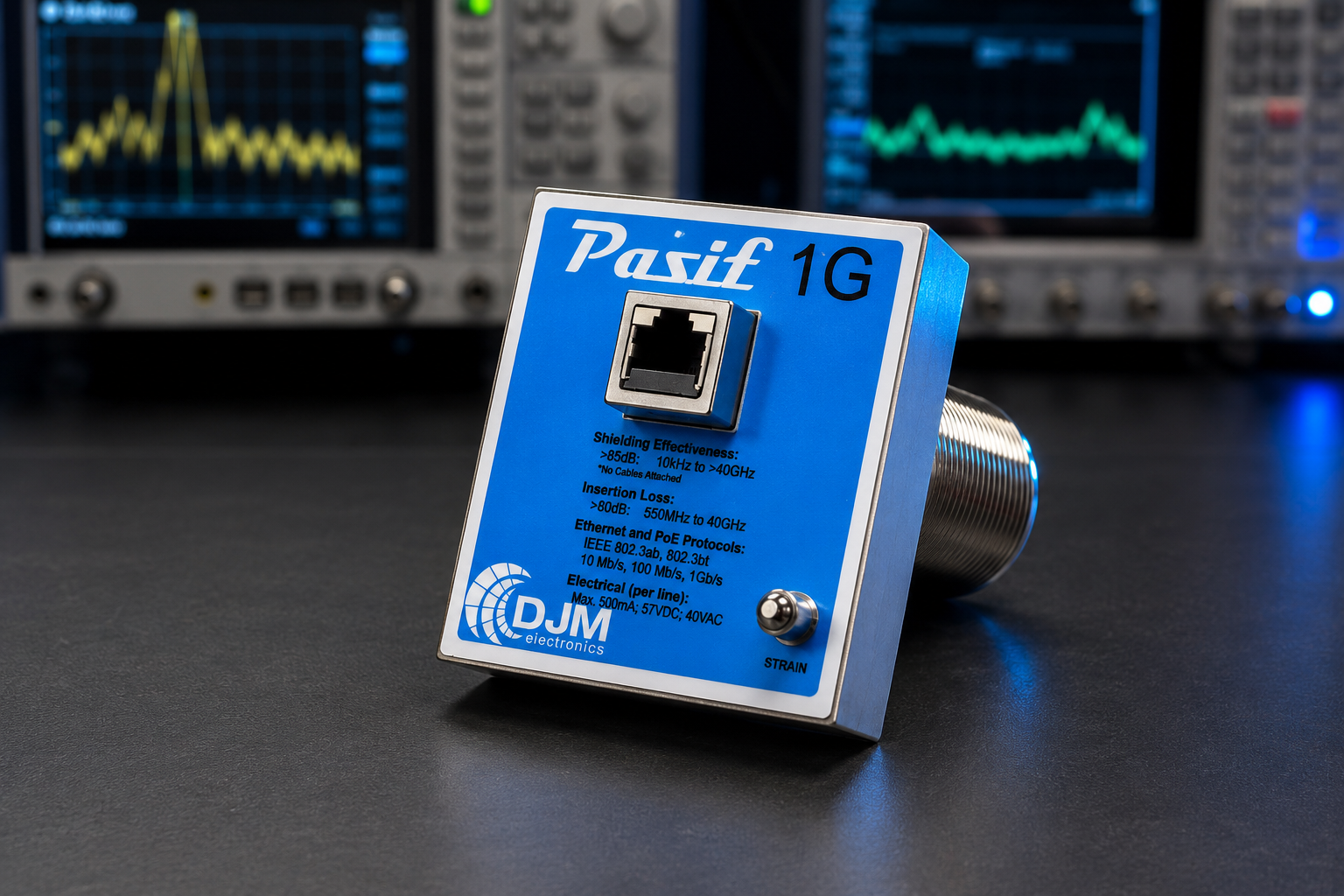

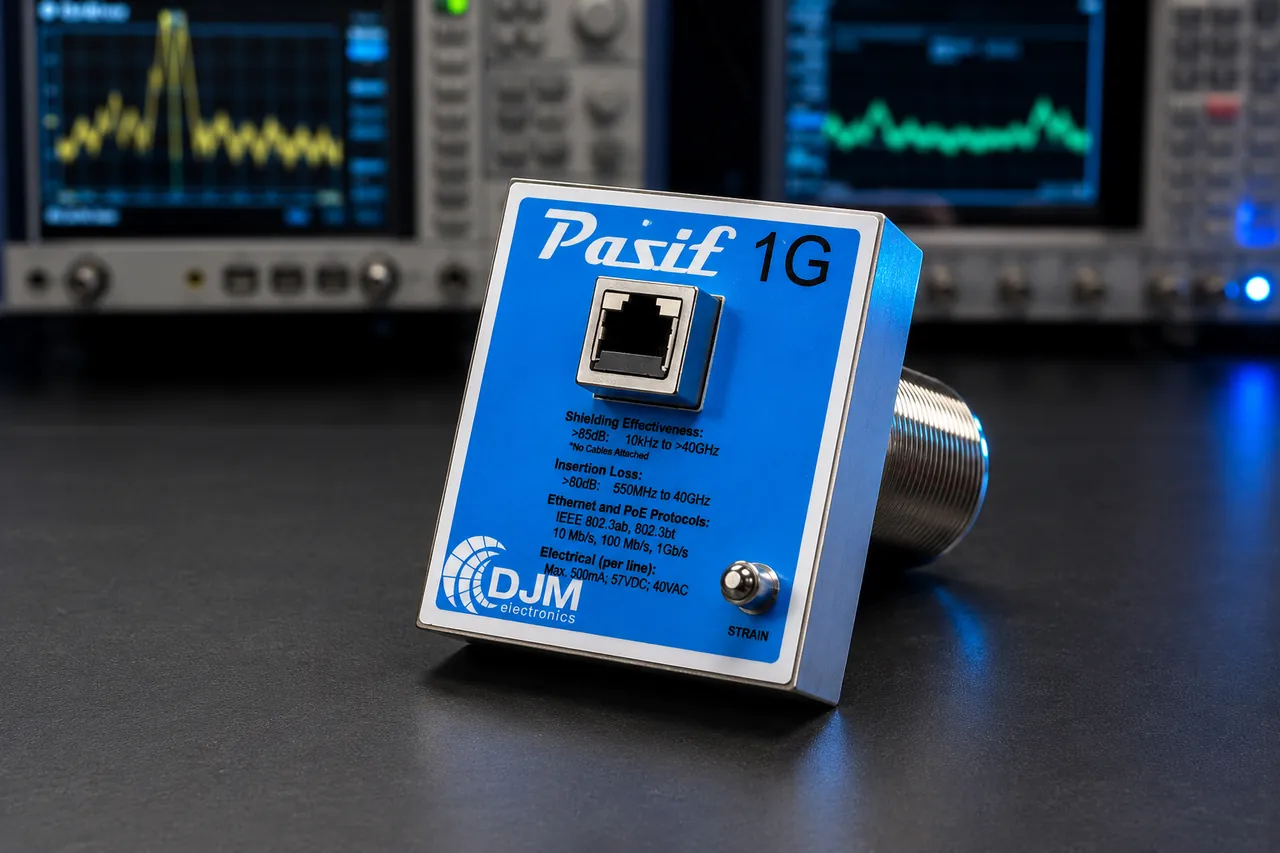

The Pasif 1G is a passive RJ-45 Ethernet EMI filter built for SCIF retrofits, ICD-705 compliance upgrades, TEMPEST installations, shielded equipment racks, and portable EMC test chambers. Cascading passive LC filter stages deliver better than 80dB of insertion loss from 550MHz to 40GHz, with better than 90dB from 700MHz to 30GHz, suppressing both radiated and conducted emissions on 10Base-T, 100Base-T, and 1000Base-T Ethernet over standard CAT5, CAT5e, CAT6, and CAT6A cabling. Power over Ethernet passes transparently when supplied by an upstream PoE switch or injector. The same 8-line architecture doubles as a general-purpose filter for DC power, RS-232, and low-voltage control signals up to 500mA per line when paired with a DJM RJ-45 to terminal block adapter. No external power. No active electronics. No internal emissions inside the shielded enclosure. Machined from solid aluminum with electroless nickel plating. Made in the USA.
80dB Insertion Loss.
No Power Required.
The Pasif 1G uses cascading passive LC filter stages to deliver better than 80dB of insertion loss from 550MHz to 40GHz, with better than 90dB from 700MHz to 30GHz, all with zero signal degradation and zero added latency on 10Base-T, 100Base-T, and 1000Base-T Ethernet. Because the filter contains no active electronics, it generates no internal emissions inside the shielded enclosure, a meaningful advantage over fiber media converters that radiate at the very frequencies where shielding integrity matters most.

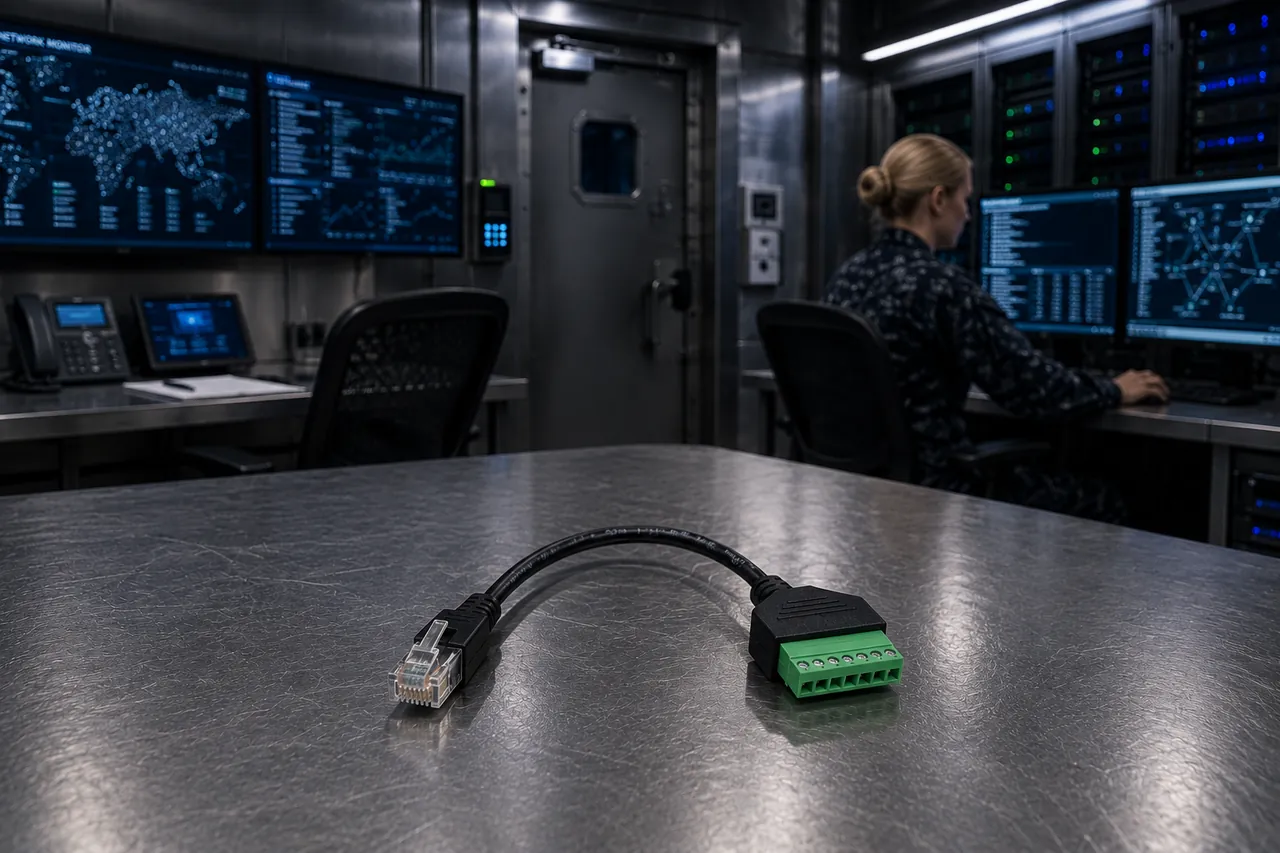

Power over Ethernet passes through transparently when supplied by an upstream PoE switch or injector, supporting downstream IP cameras, VoIP phones, and access control devices. Unlike the ACTIV POE, which generates and filters PoE in a single enclosure, the Pasif 1G acts as a pass-through only and draws no power of its own. For non-Ethernet applications, the same 8 filtered lines accept DC power, RS-232, and other low-voltage signals up to 500mA per line when paired with a DJM RJ-45 to terminal block adapter, turning standard CAT cabling into a secure, shielded conduit for any low-current signal through the enclosure wall.
Complete Electrical and Mechanical Specifications.
| Shielding Effectiveness | >100dB from 10kHz to 10GHz (typical) >85dB from 10GHz to 40GHz (typical) Tested without cables attached, per IEEE 299-2006 methodology adapted for filter characterization. |
| “Installed SE” | >80dB from 1MHz to 40GHz (typical) Calculated estimate assuming S/FTP CAT6A cabling with properly bonded 360-degree shield terminations, combining filter insertion loss, cable shielding, and re-radiation losses. Actual performance varies with cable, terminations, and installation. |
| Insertion Loss | >80dB from 550MHz to 40GHz (typical) >90dB from 700MHz to 30GHz (typical) Insertion Loss performance measured using a method based on MIL-STD-220B. |
| Lines | 8 independent filtered lines |
| Maximum Current | 500 mA per line |
| Maximum Voltage | 57 VDC or 40 VAC per line |
| Differential Impedance | 100 Ω line to line |
| Common-Mode Impedance | 50 Ω line to ground |
| Cable Compatibility | Ethernet: CAT5, CAT5e, CAT6, CAT6A with RJ-45 8P8C termination General signal filtering with RJ-45 to terminal block adapter: any multi-conductor cable carrying RS-232, RS-422, RS-485, I2C, SPI, low-voltage DC power, dry-contact controls, or similar low-current signals within the 500 mA per line limit |
| Auto Negotiation | 10Mbps, 100Mbps, 1Gbps |
| Auto MDI/MDI-X | Automatic detection and configuration |
| Hot Pluggable | Yes, no link disruption on insertion or removal |
| Auto Link Restoration | Automatic re-establishment after link loss |
| PoE Pass-Through | Passes Power over Ethernet transparently when supplied by an upstream PoE switch or injector, subject to the 500 mA per line current limit. The Pasif 1G does not generate PoE. |
| IEEE Standards | 802.3i 10Base-T (Ethernet) 802.3u 100Base-T (Fast Ethernet) 802.3ab 1000Base-T (Gigabit Ethernet) |
| Housing | Aluminum with Electroless Nickel Plating |
| Dimensions | 3.40″ × 3.25″ × 1.17″ (86.4 × 82.6 × 29.7mm) |
| Mounting | DJM Universal Mounting System 1-20 UNEF-2A Mounting Stub for Threaded Penetration 1″ NPS threaded penetration with brass mounting flange nut and mesh gasket 1″, 3″, 9″, 12″, or custom length threaded penetration |
| Connectors | RJ-45 8P8C Jack (×2) |
| External Power | None required |
| Warranty | 2 years. View warranty terms |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) continuous |
| Humidity | 5% to 90% non-condensing |
| RoHS Compliance | RoHS 3 compliant (Directive 2011/65/EU as amended by 2015/863). Self-declared. |
| REACH SVHC | No Substances of Very High Concern above the 0.1% threshold. Self-declared based on supplier documentation. |
| California Proposition 65 | No known Proposition 65 listed substances above notification thresholds. |
| Conflict Minerals | Dodd-Frank Section 1502 compliance program in place. Reasonable country of origin inquiry conducted with component suppliers. |
| Country of Origin | United States. Made in the USA. |
Four Demanding Applications.
Datasheets, Drawings, and Installation Guides.
Pasif 1G
Data Sheet
Full technical specifications and performance curves.
Download →Universal Mounting System
Mechanical specifications, penetration pipe options, and installation notes.
Download →Pasif 1G
Dimensional Drawing
Penetration, connector locations, and LED positions.
Download →Pasif 1G
3D CAD Model
STEP format for mechanical integration and enclosure planning.
Download →Pasif 1G Install Guide
Step-by-step installation instructions for shielded enclosure penetration.
Download →Ready to Specify the Pasif 1G?
Contact our engineering team for application support, samples, volume pricing, or help specifying a custom penetration length or terminal block adapter for non-Ethernet signals.
