DJM-A10G

10G

Active Ethernet EMI Filter

The ACTIV 10G is the world's most advanced active Ethernet EMI filter, delivering 100dB shielding effectiveness from 10kHz to 40GHz on standard CAT5, CAT6, and CAT7 cabling. Proprietary Digital Signal Processing (DSP) technology faithfully reproduces Ethernet signals from 10Mbps to 10Gbps while suppressing both radiated and conducted emissions with no signal leakage on either side of the enclosure wall. Machined from solid aluminum for installations ranging from climate-controlled hospital facilities to ultra-secure SCIFs and demanding military field deployments. Made in the USA.

Request a Quote

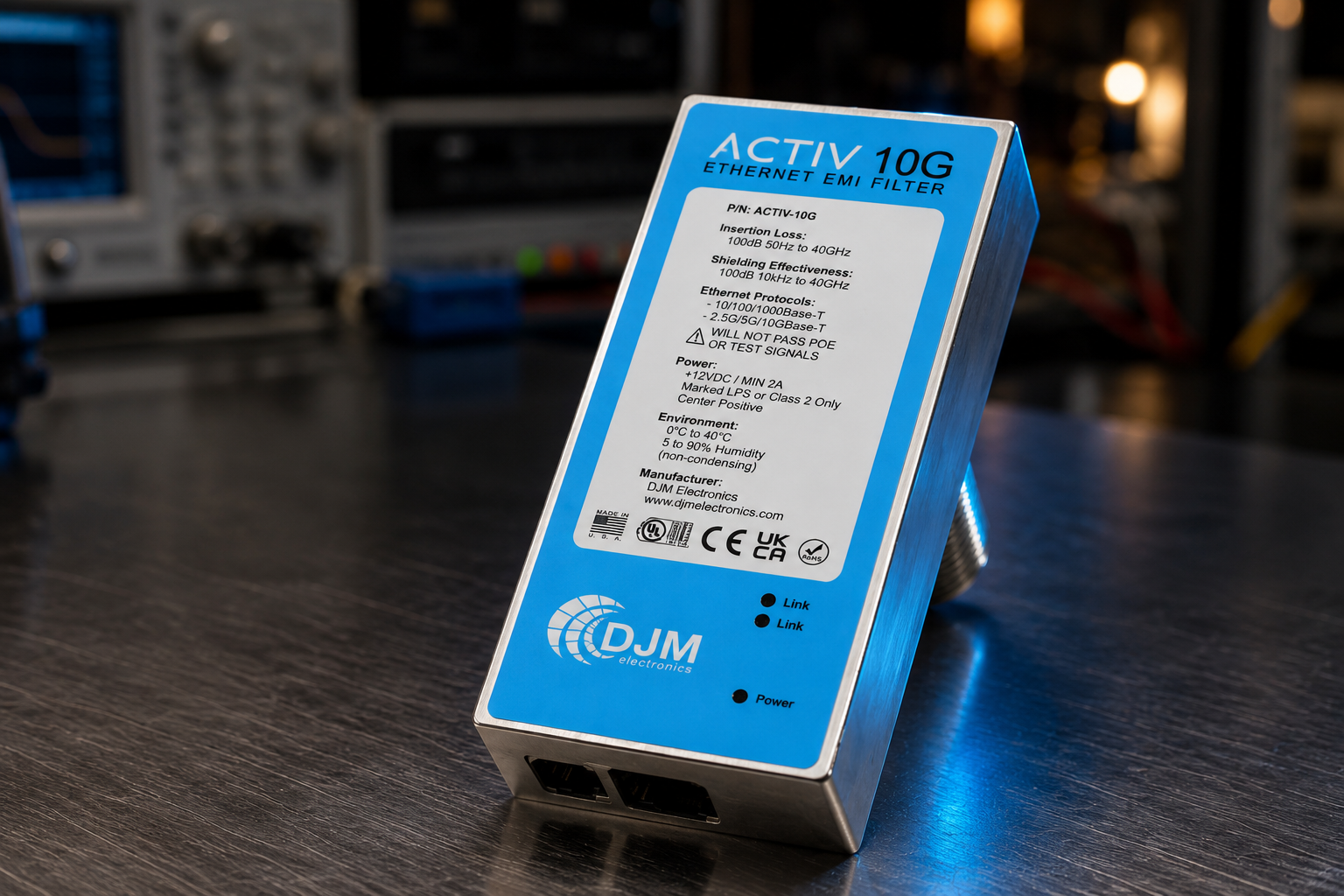

Product PhotographyMachined aluminum housing, 6.76″ × 3.00″ × 1.30″

VIEW FULL SIZE ↗

Data Rate 10 Mbps — 10 Gbps

Interface RJ-45

Filter Type Active / DSP

Attenuation >100 dB

Frequency 10 kHz — 40 GHz

Filter Performance Performance

100dB Shielding Effectiveness.
10kHz to 40GHz.

The ACTIV 10G employs proprietary DSP technology to actively reconstruct Ethernet signals without interference. Unlike passive RJ-45 EMI filters that degrade signal integrity at high data rates, the ACTIV 10G DSP engine operates at line rate — faithfully reproducing every packet while eliminating both radiated and conducted EMI. No signal leakage. No latency. No impact on network performance.

Military-grade passive filtering stages supplement the active DSP core, extending attenuation across the full frequency band from 10kHz to 40GHz. The machined aluminum housing provides mechanical shielding and rugged protection for any installation environment — from ICD-705 compliant SCIF facilities and high-field MRI rooms to RF and EMC test laboratories and reference audio installations. The DJM Universal Mounting System accommodates wall thicknesses from 1/8 inch to over 11 inches with standard penetrations of 1″, 3″, 9″, and 12″. Custom lengths available for any wall thickness.

Proprietary DSP Technology

Actively reconstructs Ethernet signals at line rate without conducted or radiated EMI. No latency, no signal distortion, and invisible to network negotiation at any supported data rate from 10Mbps to 10Gbps.

Military-Grade Construction

Machined from solid aluminum with electroless plated nickel finish. ESD and transient voltage suppressors, gas discharge tubes, and current limiters on all signal lines. Built for harsh environments and long service life.

Universal Mounting System

Mounts to any RF shielded enclosure or shielded room from any manufacturer. Standard penetration lengths of 1″, 3″, 9″, and 12″ accommodate wall thicknesses from 1/8 inch to over 11 inches. Custom lengths available for any wall thickness.

Auto-Negotiating, Hot Pluggable

Automatically negotiates 10Mbps through 10Gbps on standard CAT cable. Hot pluggable with auto MDI/MDI-X and auto link restoration — insertion or removal does not interrupt other active ports.

Technical Specifications

Complete Electrical and Mechanical Specifications.

Filter Performance

Shielding Effectiveness	>100dB from 10kHz to 40GHz (typical) Tested without cables attached, per IEEE 299-2006 methodology adapted for filter characterization.
“Installed SE”	>100dB from 10kHz to 40GHz (typical, cable-independent) The DSP signal reconstruction removes EMI at the filter boundary regardless of external cable type or shielding quality. “Installed SE” tracks filter SE across all cable configurations.
Insertion Loss	>100dB from 50Hz to 40GHz (typical) Insertion Loss performance measured using a method based on MIL-STD-220B.
Radiated and Conducted Emissions	Exceeds MIL-STD-461 CE102 Exceeds MIL-STD-461 RE102 Exceeds FCC Part 15 A, B Exceeds EN 55032 Class A, B
	ACTIV™ EMI filters are active filters and produce a limited amount of radiated emissions inside the shielded enclosure. Please contact DJM Electronics for information regarding your particular application.

Network Performance

Auto Negotiation	10Mbps, 100Mbps, 1Gbps, 2.5Gbps, 5Gbps, 10Gbps
Auto MDI/MDI-X	Automatic detection and configuration
Hot Pluggable	Yes — no link disruption on insertion/removal
Auto Link Restoration	Automatic re-establishment after link loss
IEEE Standards	802.3i — 10Base-T (Ethernet) 802.3u — 100Base-T (Fast Ethernet) 802.3ab — 1000Base-T (Gigabit Ethernet) 802.3an — 10GBase-T (10G Ethernet) 802.3bz — 2.5GBase-T / 5GBase-T

Construction

Housing	Aluminum w/Electroless Plated Nickel
Dimensions	6.76″ × 3.00″ × 1.30″ (171.7 × 76.2 × 33.0mm)
Mounting	DJM Universal Mounting System 1-20 UNEF-2A Mounting Stub for Threaded Penetration 1″ NPS threaded penetration w/brass mounting flange nut and mesh gasket 1″, 3″, 9″, 12″, or custom length threaded penetration
Connectors	RJ-45 8P8C Jack (×2) 2.1mm × 5.5mm DC Barrel Jack
Indicators	Power: Red when power is present. Link Status (Input/Output): 10Mbps — Red100Mbps — Green1Gbps — Dark Blue2.5Gbps — Yellow5Gbps — Purple10Gbps — Light Blue
Power	Input: 100-240VAC, 50/60Hz Output: +12V / 2000mA minimum, via supplied power adapter (Marked "LPS" or "Class 2" Only) DC Plug: 2.1mm × 5.5mm, center positive Note: The ACTIV 10G Hardwire Kit is available for installations where AC outlets are unavailable or code-prohibited. Order separately.
Warranty	2 years. View warranty terms

Environmental

Operating Temperature	0°C to 40°C (32°F to 104°F) continuous
Humidity	5% to 90% non-condensing

Safety and Regulatory

UL File Number	E362686
UL / CSA	UL 62368-1 CAN/CSA C22.2 No. 62368-1
IEC	EN IEC 62368-1:2020+A11:2020 IEC 62368-1:2018
National Standards	GB 4943.1-2022 AS/NZS 62368.1:2022
FCC	47 CFR Part 15B ICES-003 Issue 7
EMC	EN 55032:2015+A11 EN 55035:2017+A11
Power Quality	EN 61000-3-2:2014 EN 61000-3-3:2013+A1,A2
ICES	ICES-Gen Issue 1 + A1:2021
RoHS Compliance	RoHS 3 compliant (Directive 2011/65/EU as amended by 2015/863). Self-declared.
REACH SVHC	No Substances of Very High Concern above the 0.1% threshold. Self-declared based on supplier documentation.
California Proposition 65	No known Proposition 65 listed substances above notification thresholds.
Conflict Minerals	Dodd-Frank Section 1502 compliance program in place. Reasonable country of origin inquiry conducted with component suppliers.
Country of Origin	United States. Made in the USA.

Accessories

Extend the Capabilities of Your ACTIV 10G.

ACTIV 10G Hardwire Kit

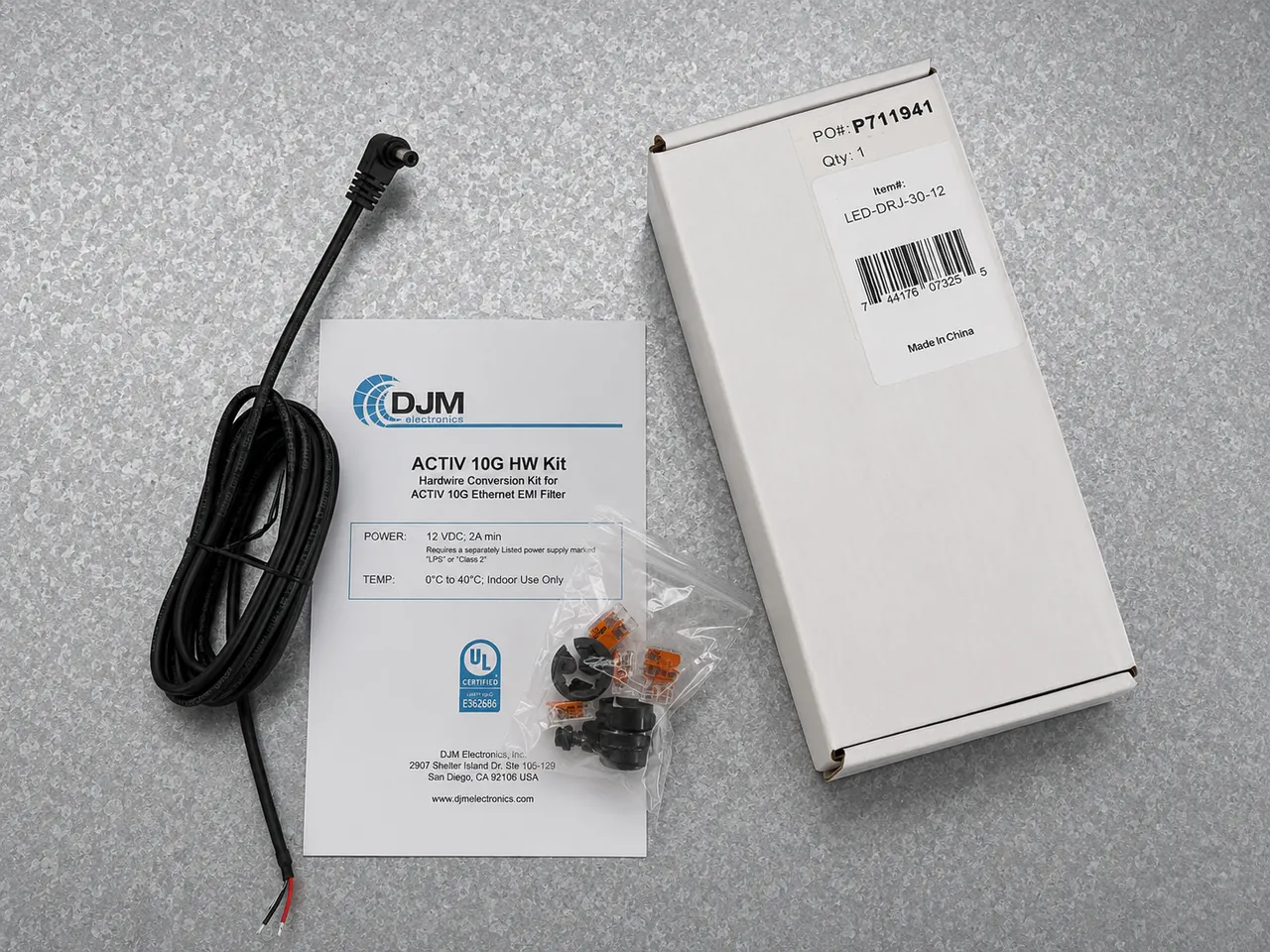

The ACTIV 10G Hardwire Kit converts any standard ACTIV 10G into a permanent hardwired installation using building power. The kit includes a steel junction box with an internal Mean Well LPV-60-12 12VDC power supply, a perforated steel cover panel, a 10-foot plenum-rated barrel connector cable, and mounting hardware. Designed for installations where AC outlets are unavailable, code-prohibited, or impractical, including above drop ceilings, inside equipment rooms, and in MRI suites where electrical code in many states prohibits AC outlets above the ceiling plane. Order the ACTIV 10G and the Hardwire Kit separately.

Request a Quote

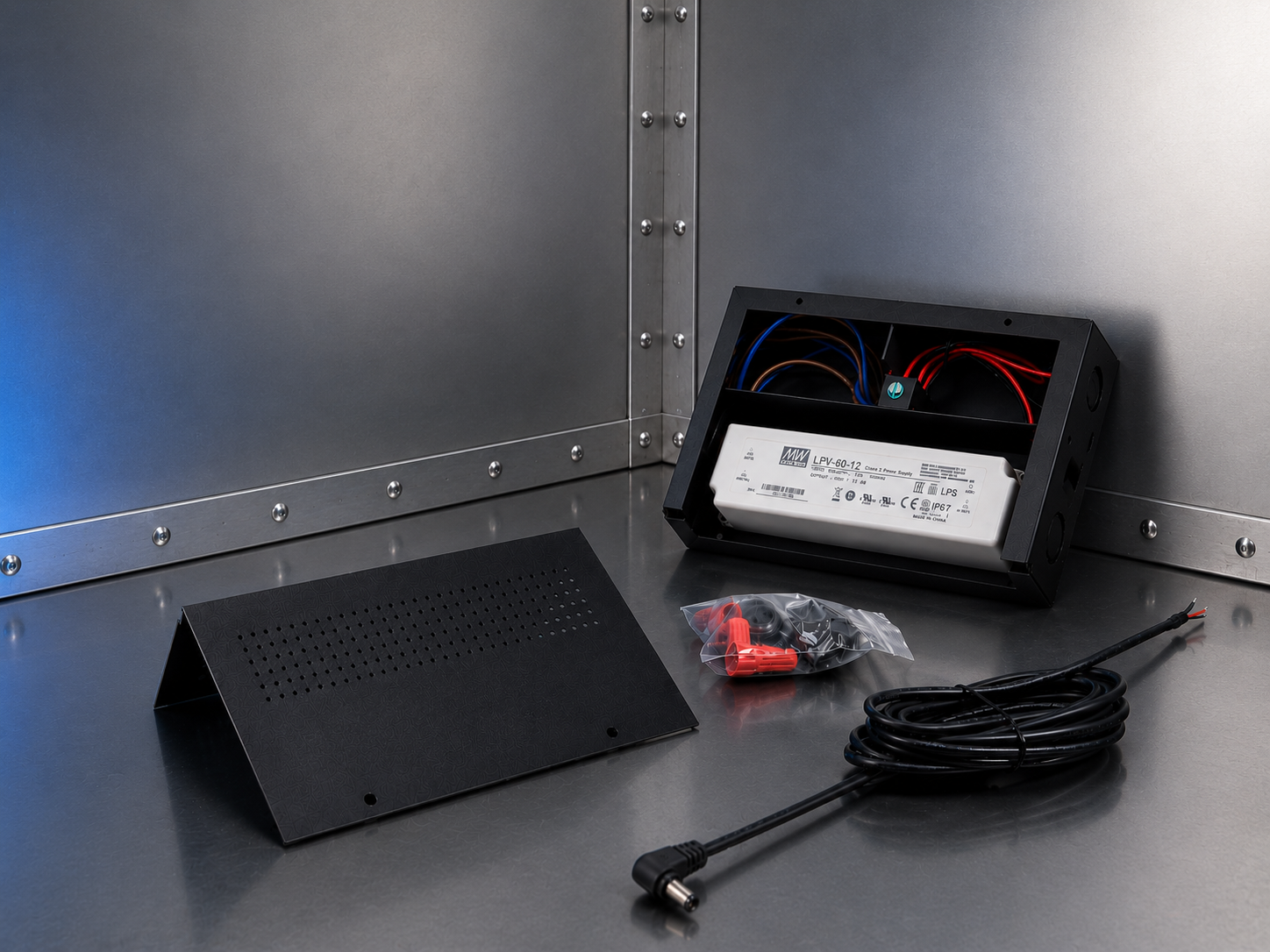

ACTIV 10G Hardwire Kit — junction box, Mean Well LPV-60-12 power supply, barrel connector cable, and hardware

ACTIV 10G EMP Kit

The ACTIV 10G EMP Kit adds electromagnetic pulse protection to the ACTIV 10G for Ethernet connections requiring hardened infrastructure. An EMP surge suppressor rated to MIL-STD-188-125 E1 and E2 pulse events mounts inside an outdoor junction box on the exterior face of the shield wall, with the ACTIV 10G filter installed on the interior side in the standard configuration. Surge suppressor waveform characteristics and protection levels can be modified for specific application requirements. Maximum data rate with the EMP Kit installed is 1 Gbps. Available by special order only.

View ACTIV 10G EMP Specifications →
