Active Power Over Ethernet EMI Filter

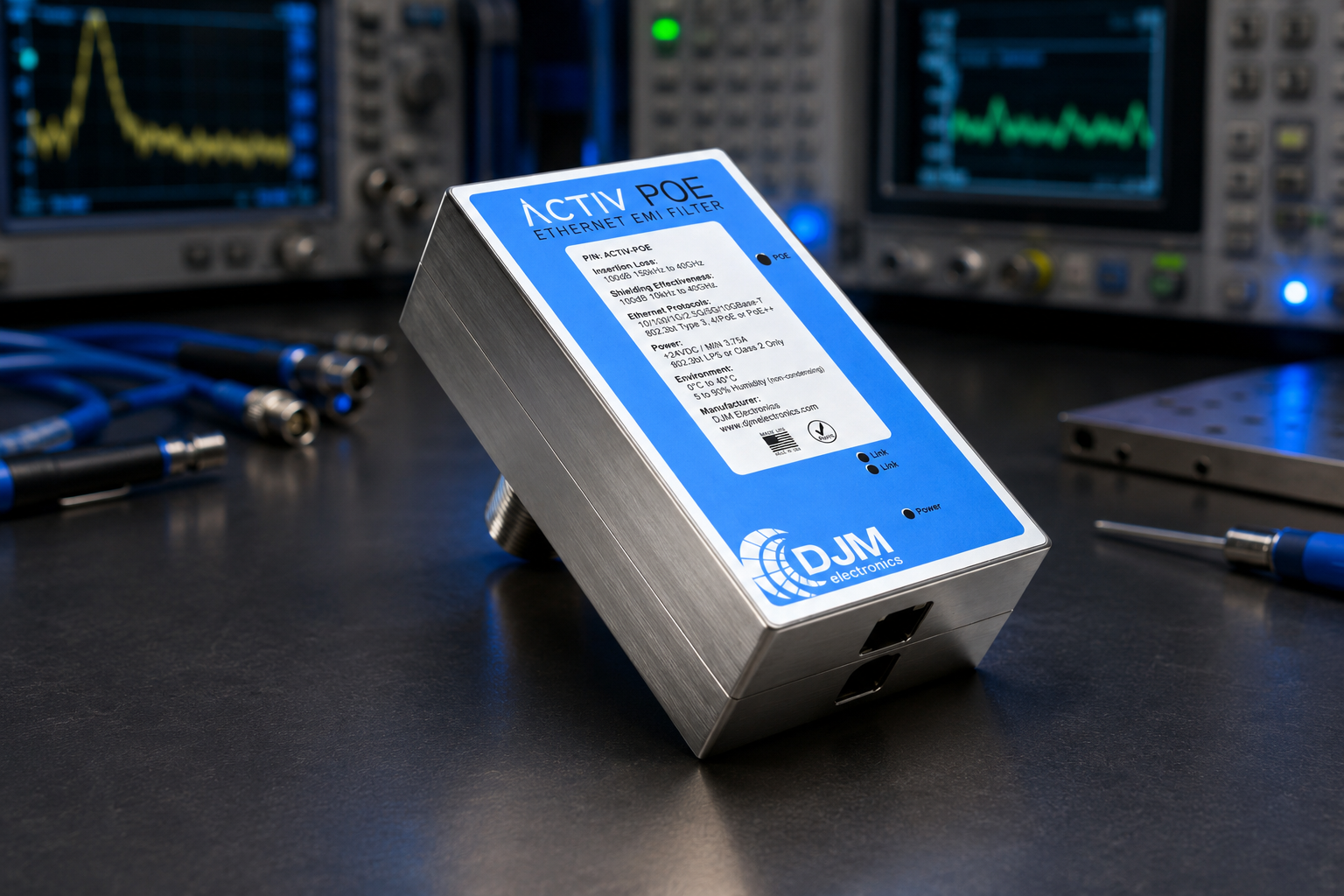

The ACTIV POE is the world's most advanced active Power over Ethernet EMI filter, delivering 100dB shielding effectiveness from 10kHz to 40GHz for Ethernet connections from 10Mbps to 10Gbps. Proprietary Digital Signal Processing (DSP) technology faithfully reproduces Ethernet signals while suppressing both radiated and conducted emissions with no signal leakage on either side of the enclosure wall. The filter simultaneously generates and filters up to 60W of 802.3bt PoE power through a single shield penetration — eliminating the need for a separate power penetration, separate PoE injector, or separate power supply inside the shielded enclosure. Made in the USA.
100dB Shielding Effectiveness.
Data and Power. One Penetration.
The ACTIV POE employs proprietary DSP technology to actively reconstruct Ethernet signals without interference while simultaneously providing Power over Ethernet on the same CAT cable. Unlike passive RJ-45 EMI filters that degrade signal integrity at high data rates, the DSP engine operates at line rate — faithfully reproducing every packet while eliminating both radiated and conducted EMI. No signal leakage. No latency. No impact on network performance or PoE detection.
The ACTIV POE supports 802.3bt Type 3 PoE up to 60W through a single shield wall penetration. This eliminates the separate penetration for a power filter, separate PoE injector, and separate AC power supply that would otherwise be required for powered devices inside a shielded enclosure. Security cameras, access control readers, wireless access points, and networked sensors can all be powered and connected through a single DJM filter. The Universal Mounting System accommodates wall thicknesses from 1/8 inch to over 11 inches with standard penetrations of 1″, 3″, 9″, and 12″. Custom lengths available for any wall thickness.
Complete Electrical and Mechanical Specifications.
| Shielding Effectiveness | >100dB from 10kHz to 40GHz (typical) Tested without cables attached, per IEEE 299-2006 methodology adapted for filter characterization. |
| “Installed SE” | >100dB from 100kHz to 40GHz (typical) Calculated estimate assuming S/FTP CAT6 or CAT6A cabling with properly bonded 360-degree shield terminations, combining filter insertion loss, cable shielding, and re-radiation losses. Actual performance varies with cable, terminations, and installation. Cable-independent above 250kHz where filter Insertion Loss alone exceeds 100dB. |
| Insertion Loss | >100dB from 250kHz to 40GHz (typical) Insertion Loss performance measured using a method based on MIL-STD-220B. |
| Radiated and Conducted Emissions | Exceeds MIL-STD-461 CE102 Exceeds MIL-STD-461 RE102 Exceeds FCC Part 15 A, B Exceeds EN 55032 Class A, B |
| ACTIV™ EMI filters are active filters and produce a limited amount of radiated emissions inside the shielded enclosure. Please contact DJM Electronics for information regarding your particular application. |
| Auto Negotiation | 10Mbps, 100Mbps, 1Gbps, 2.5Gbps, 5Gbps, 10Gbps |
| Auto MDI/MDI-X | Automatic detection and configuration |
| Hot Pluggable | Yes — no link disruption on insertion/removal |
| Auto Link Restoration | Automatic re-establishment after link loss |
| IEEE Standards | 802.3i — 10Base-T (Ethernet) 802.3u — 100Base-T (Fast Ethernet) 802.3ab — 1000Base-T (Gigabit Ethernet) 802.3an — 10GBase-T (10G Ethernet) 802.3bz — 2.5GBase-T / 5GBase-T |
| PoE Standard | 802.3bt Type 3 4PPoE / PoE++ |
| Maximum Power | 600mA per pair 54VDC · 60 Watts 6 Power Class Levels |
| Housing | Aluminum w/Electroless Plated Nickel |
| Dimensions | 7.30″ × 4.80″ × 2.31″ (185.4 × 121.9 × 58.7mm) |
| Mounting | DJM Universal Mounting System 1-20 UNEF-2A Mounting Stub for Threaded Penetration 1″ NPS threaded penetration w/brass mounting flange nut and mesh gasket 1″, 3″, 9″, 12″, or custom length threaded penetration |
| Connectors | RJ-45 8P8C Jack (×2) 4-Pin DIN Jack (power input) |
| Indicators | Power: Red when power is present. PoE Power: Red when PoE is active. Link Status (Input/Output): 10Mbps — Red100Mbps — Green1Gbps — Dark Blue2.5Gbps — Yellow5Gbps — Purple10Gbps — Light Blue |
| Power | Input: 100-240VAC, 50/60Hz Output: +24V / 3.75A minimum, via supplied power adapter (Marked "LPS" or "Class 2" Only) DC Plug: 4-Pin DIN Pin assignment: Pins 1/4 positive · Pins 2/3 ground |
| Warranty | 2 years. View warranty terms |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) continuous |
| Humidity | 5% to 90% non-condensing |
| RoHS Compliance | RoHS 3 compliant (Directive 2011/65/EU as amended by 2015/863). Self-declared. |
| REACH SVHC | No Substances of Very High Concern above the 0.1% threshold. Self-declared based on supplier documentation. |
| California Proposition 65 | No known Proposition 65 listed substances above notification thresholds. |
| Conflict Minerals | Dodd-Frank Section 1502 compliance program in place. Reasonable country of origin inquiry conducted with component suppliers. |
| Country of Origin | United States. Made in the USA. |
Four Demanding Applications.
Datasheets, Drawings, and Installation Guides.
ACTIV POE
Data Sheet
Full technical specifications and performance curves.
Download →Universal Mounting System
Mechanical specifications, penetration pipe options, and installation notes.
Download →ACTIV POE
Dimensional Drawing
Penetration, connector locations, and LED positions.
Download →ACTIV POE Install Guide
Step-by-step installation instructions for shielded enclosure penetration.
Download →ACTIV POE
3D CAD Model
STEP format for mechanical integration and enclosure planning.
Download →Ready to Specify the ACTIV POE?
Contact our engineering team for application support or help determining if the ACTIV POE is right for your installation.
