AC10
Passive 10A AC Power EMI Filter

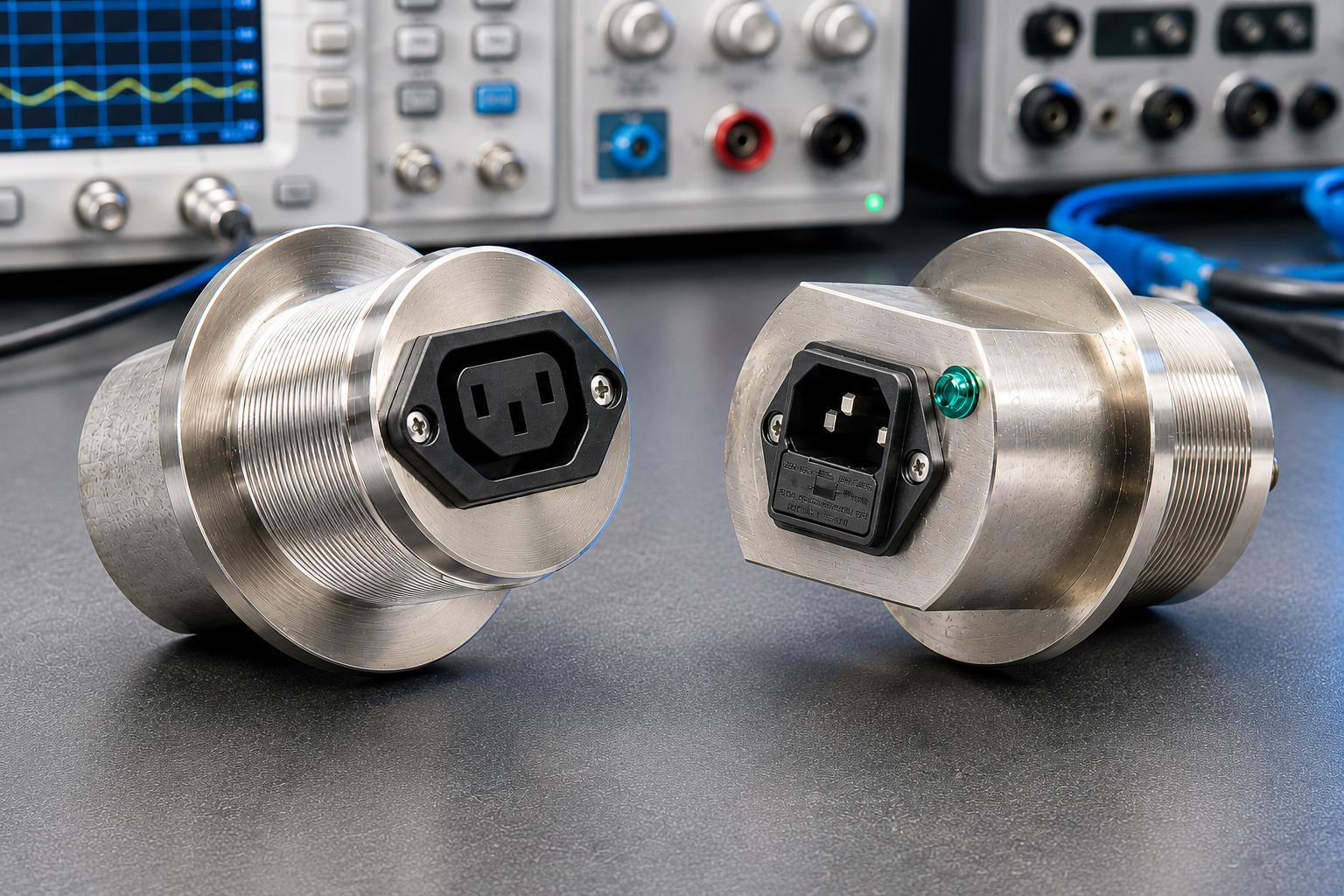

The Pasif AC10 is the only AC power EMI filter in its class that installs in a single penetration with no hardwiring. Integrated IEC 60320 C-14 input and C-13 output connectors eliminate the terminal blocks, conduit fittings, and licensed electrical work that traditional AC power filters require. Cascading passive LC filter stages deliver better than 80dB of insertion loss from 125MHz to 40GHz, rising to better than 100dB from 2GHz to 40GHz, on AC power lines feeding RF shielded test enclosures, screen rooms, SCIFs, SAPFs, and shielded racks. Rated for 100VAC to 250VAC at 10 amps with an integrated safety fuse, 50/60Hz single-phase. Machined from solid aluminum with electroless nickel plating. Made in the USA.
80dB Insertion Loss from 125MHz.
100dB Above 2GHz.
The Pasif AC10 uses cascading passive LC filter stages to deliver better than 80dB of insertion loss from 125MHz to 40GHz, with better than 100dB from 2GHz to 40GHz, on single-phase AC power lines at 100VAC to 250VAC. The filter contains no active electronics, generates no internal emissions inside the shielded enclosure, and requires no external power of its own, a meaningful advantage over any power filtering approach that introduces active components behind the shield wall.
Every other AC power filter in this class requires hardwiring at both ends, with terminal blocks, conduit fittings, and licensed electrical labor on both sides of the shielded wall. The Pasif AC10 installs through a single threaded penetration and accepts standard IEC power cords on both ends. Purpose-built for RF shielded test enclosures, screen rooms, tabletop enclosures, shielded racks, SCIFs, and SAPFs where installation time and labor cost are as important as filter performance.
Complete Electrical and Mechanical Specifications.
| Shielding Effectiveness | >100dB from 10kHz to >20GHz (typical) Tested without cables attached, per IEEE 299-2006 methodology adapted for filter characterization. |
| Installed System Shielding Effectiveness | >80dB from 100MHz to 40GHz (typical), rising to >95dB from 2GHz to 40GHz Calculated estimate assuming unshielded AC power cabling routed directly to and from the filter, combining filter insertion loss, coupling efficiency, and re-radiation losses. Actual performance varies with cable routing, length, and installation. |
| Insertion Loss | >80dB from 125MHz to 40GHz (typical) >100dB from 2GHz to 40GHz (typical) Measured per MIL-STD-220B methodology. |
| Voltage | 100 VAC to 250 VAC; 350 VAC maximum |
| Current | 10 A maximum |
| Power Source | Single phase, 50/60 Hz |
| Integrated Safety Fuse | 10 A fuse on C-14 input |
| Housing | Aluminum with Electroless Nickel Plating |
| Dimensions | 3.20″ × 3.20″ × 3.31″ |
| Mounting | 2.25-16 UN threaded pipe, 1.5″ length Aluminum chem-filmed flange nut |
| Connectors | IEC 60320 C-14 Input IEC 60320 C-13 Output |
| External Power | None required |
| Warranty | 2 years. View warranty terms |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) continuous |
| Humidity | 5% to 90% non-condensing |
| RoHS Compliance | RoHS 3 compliant (Directive 2011/65/EU as amended by 2015/863). Self-declared. |
| REACH SVHC | No Substances of Very High Concern above the 0.1% threshold. Self-declared based on supplier documentation. |
| California Proposition 65 | No known Proposition 65 listed substances above notification thresholds. |
| Conflict Minerals | Dodd-Frank Section 1502 compliance program in place. Reasonable country of origin inquiry conducted with component suppliers. |
| Country of Origin | United States. Made in the USA. |
