DJM-A10G-HWKit

10G HW Kit

Hardwired DC power conversion for the ACTIV 10G

The ACTIV 10G HW Kit converts the ACTIV 10G Ethernet EMI filter to a hardwired DC power connection for locations where an AC outlet is unavailable, prohibited by electrical code, or otherwise unacceptable. The most common application is MRI suites, where code prohibits outlets above drop ceilings in the magnet room. The kit is also used in SCIFs and other shielded enclosure installations where outlet placement is constrained by facility design or security requirements. The kit includes an American Lighting LED-DRJ-30-12 cULus Listed, Class 2, 12 VDC power supply. The supply is separately Listed and is not part of the ACTIV 10G filter's UL Listing.

Request a Quote Contact Engineering

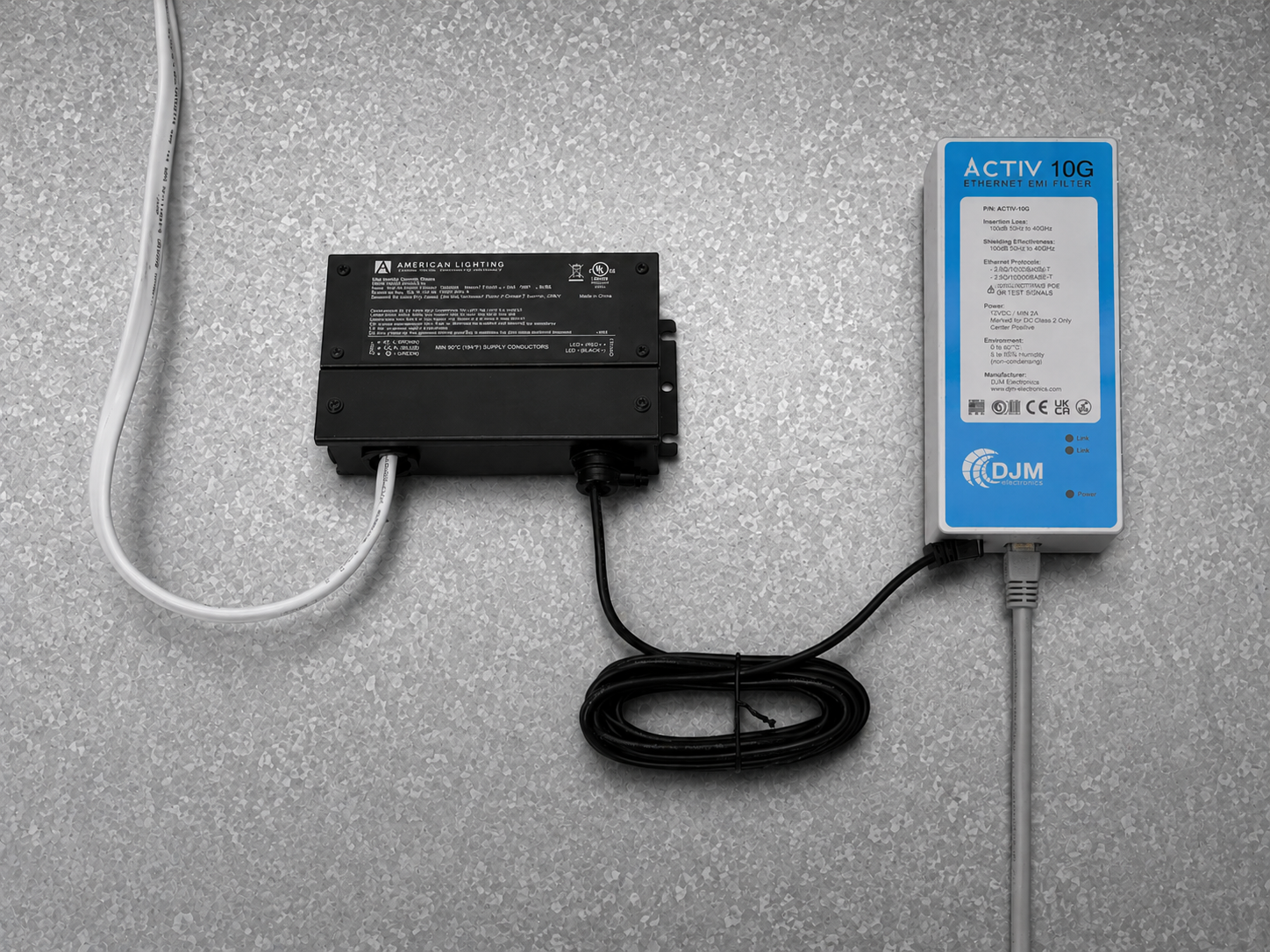

ACTIV 10G HW Kit installed above a drop ceiling, showing the junction box, cordset, and ACTIV 10G filter mounted through the shield wall

Compatibility ACTIV 10G

Building Power 100–277 VAC50/60 Hz · 0.5 A max

Cordset CMP / CL2P18 AWG shielded plenum

Certification UL E362686

Kit Overview What's in the Kit

Everything Needed
for a Hardwired Installation.

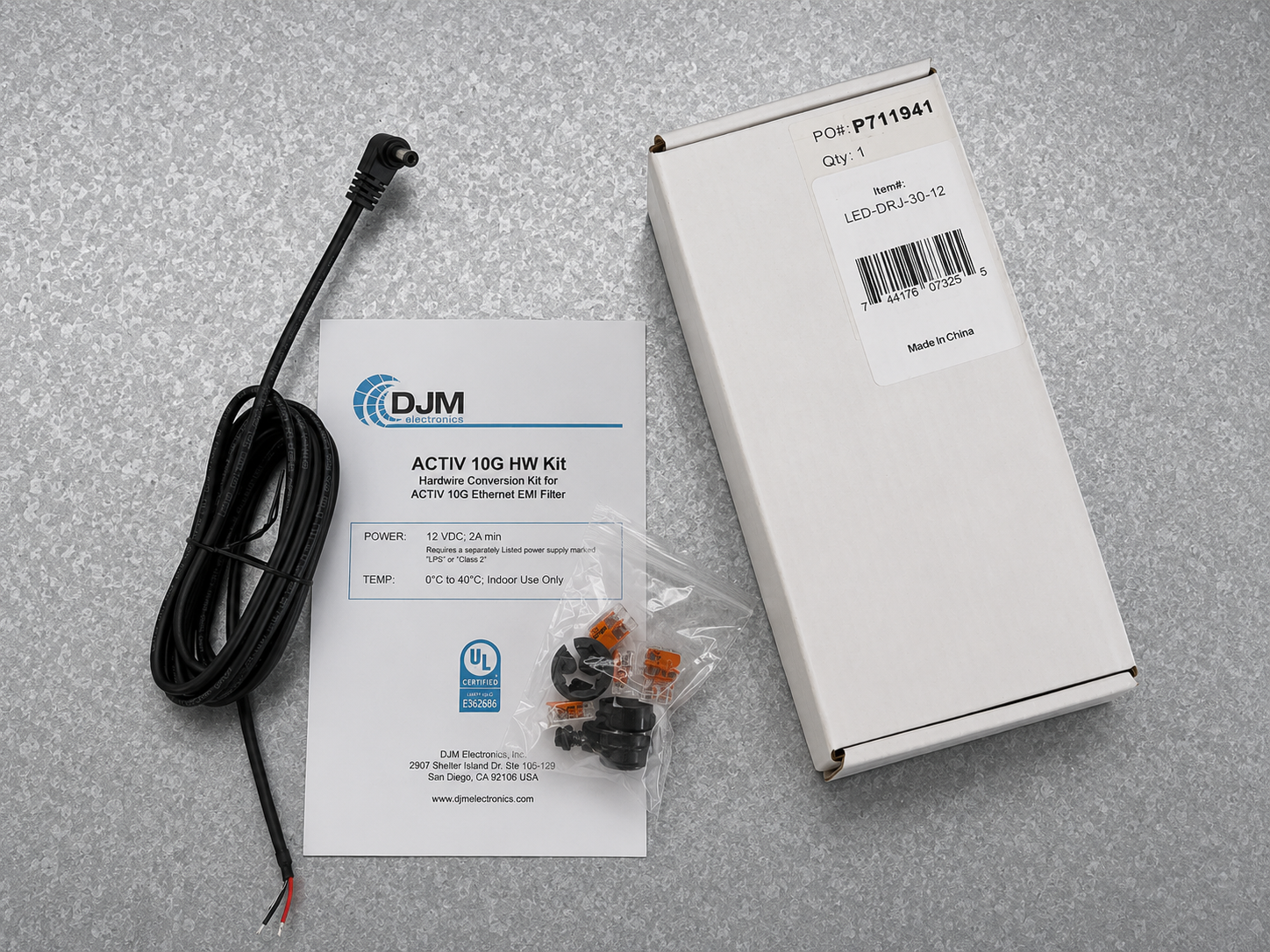

The HW Kit includes an American Lighting LED-DRJ-30-12 cULus Listed, Class 2, 12 VDC power supply; a shielded plenum-rated DC cordset with right-angle barrel connector; WAGO 221 lever connectors; a snap-in strain relief connector and cable bushing; and an instruction sheet with complete installation steps. The LED-DRJ-30-12 can power up to two ACTIV 10G filters.

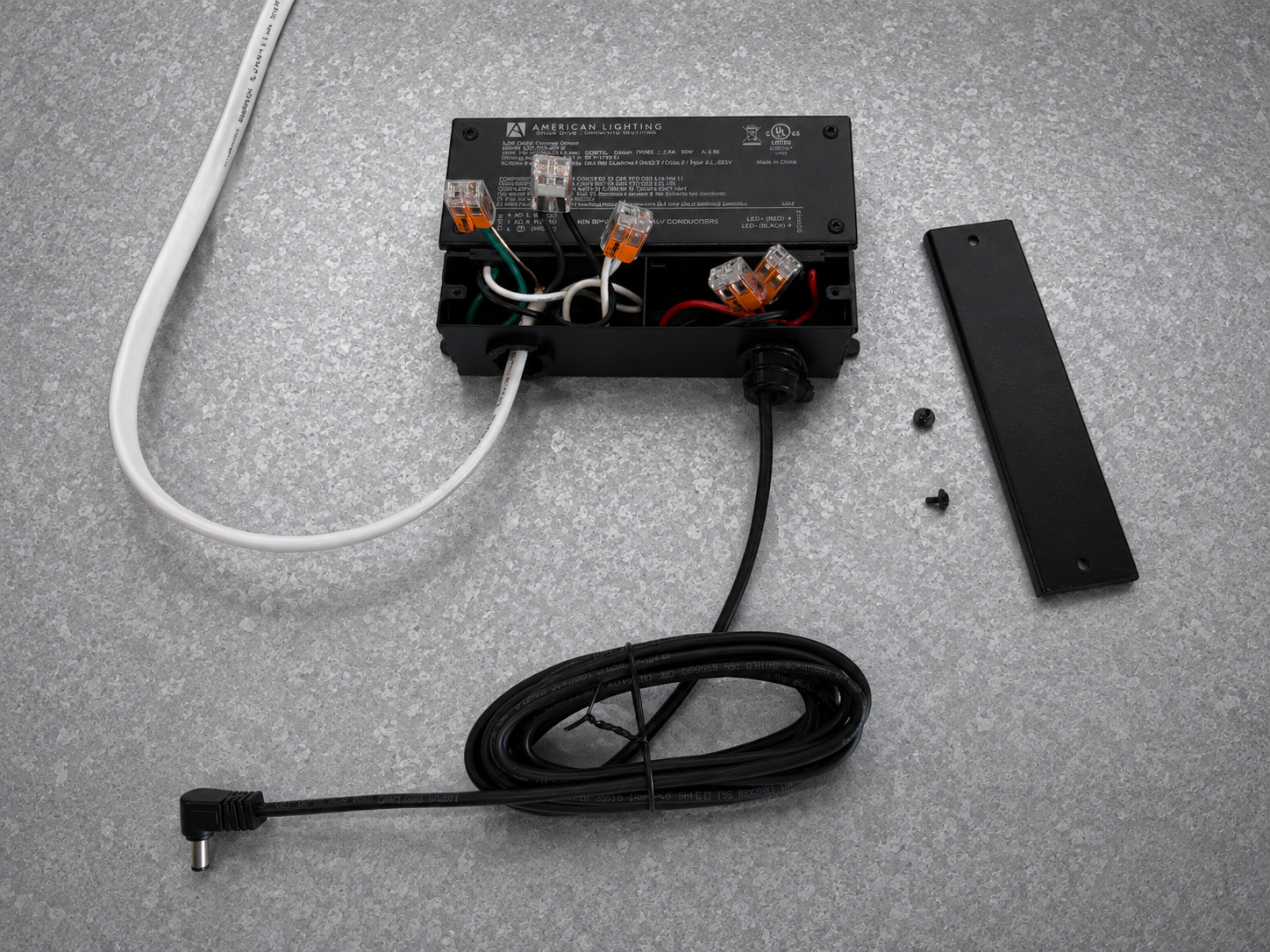

All kit components — the power supply and its junction box, the DC cordset, and the ACTIV 10G filter itself — install outside the shielded enclosure or magnet room. AC supply conductors land in the junction box via the snap-in strain relief connector. DC exits through the included cable bushing to the ACTIV 10G's barrel jack. All connections are made with the included WAGO 221 lever connectors.

The included LED-DRJ-30-12 is cULus Listed, Class 2, 12 VDC. It is separately Listed and not part of the ACTIV 10G filter's UL Listing (File E362686).

MRI Suite Ready

All kit components — power supply, junction box, DC cordset, and the ACTIV 10G filter — install outside the magnet room. Any Ethernet cable or hardware that enters the magnet room must be non-ferrous.

Plenum-Rated Cordset

CMP/CL2P-rated 18 AWG shielded cordset with right-angle barrel connector. Suitable for above-ceiling plenum spaces without conduit in most jurisdictions.

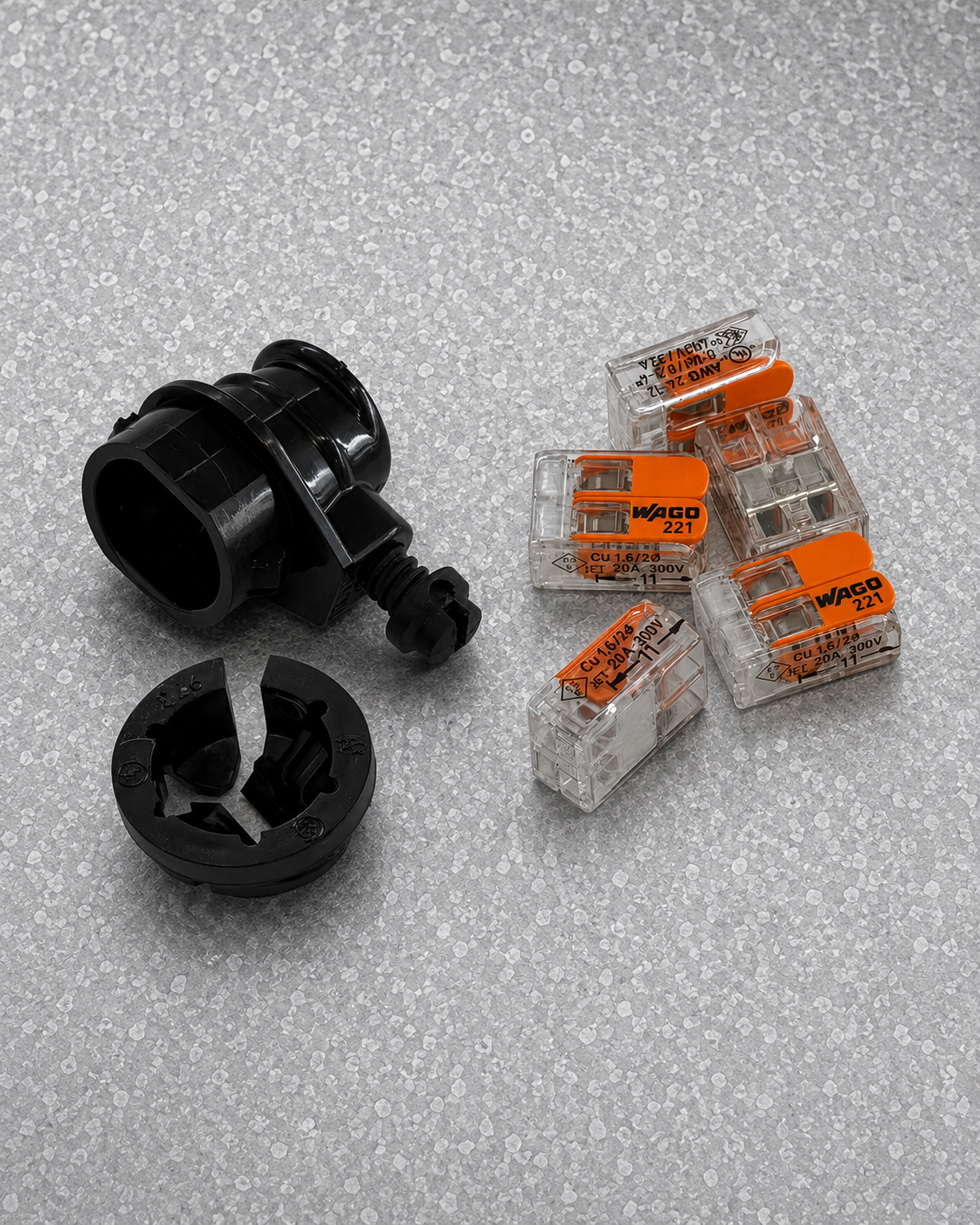

WAGO 221 Lever Connectors

Tool-free, push-lever termination for the DC supply connections. No wire nuts. Reusable, cage-clamp design holds stranded and solid conductors without tools.

UL Certified Construction

UL Certified under File E362686. Cordset drain wire is a solder-tipped bare braid for reliable shield continuity. Snap-in strain relief connector provides code-compliant cable entry to the junction box.

Specifications

Full Technical Specifications.

Compatibility and Power

Compatibility	ACTIV 10G Ethernet EMI Filter (hardwired DC power conversion)
Filter Power Input	12 VDC, 2 A minimum · 2.1 mm × 5.5 mm DC barrel jack, center positive · Supplied by the included power supply (marked "LPS" or "Class 2")
Building Power (to power supply)	100–277 VAC, 50/60 Hz, 0.5 A max · AC input of the included American Lighting LED-DRJ-30-12
Note	The ACTIV 10G filter is powered by 12 VDC only. The LED-DRJ-30-12 power supply is separately Listed (cULus Listed, Class 2) and is not part of the filter's UL Listing, File E362686.

Cordset

Rating	Plenum-rated: CMP / CL2P
Conductor	18 AWG, shielded
Insulation Temperature	75°C
Connector	Right-angle DC barrel jack (2.1 mm × 5.5 mm, center positive)

Included Power Supply

American Lighting LED-DRJ-30-12
Input	100–277 VAC, 50/60 Hz, 0.5 A max
Output	12 VDC, 2.5 A, 30 W
Capacity	Powers up to two ACTIV 10G filters
Listing	cULus Listed, Class 2
Note	The supply is separately Listed and is not part of the ACTIV 10G filter's UL Listing (File E362686). If a substitute supply is needed, it must be Listed (not merely Recognized) and marked "LPS" or "Class 2," rated 12 VDC, 2 A minimum (single filter).

Environmental

Operating Temperature	0°C to 40°C (32°F to 104°F)
Environment	Indoor use only

Safety and Regulatory

UL File Number	E362686
Certification	UL Certified
Country of Origin	ACTIV 10G filter: Made in the USA. Kit components sourced globally.

Safety

Read Before Installing.

Warning

Risk of electric shock. Connection to building power must be performed by a qualified electrician in compliance with local electrical codes. A readily accessible disconnect device must be incorporated in the building installation wiring.

Installation Notes

Connection to building power must be performed by a qualified electrician in compliance with applicable electrical codes.
The included LED-DRJ-30-12 power supply is UL Listed and marked Class 2. If substituting a different supply, it must be Listed (not merely Recognized) and marked "LPS" or "Class 2." UL Recognized-only components are not acceptable for field installation.
For installations near an MRI magnet room: all HW Kit components — the power supply, junction box, DC cordset, and ACTIV 10G filter — mount outside the magnet room. Any Ethernet cable or hardware that enters the magnet room must be non-ferrous.
